ALERIO Advanced Digital C-arm Machine Supplier in Kolkata, W

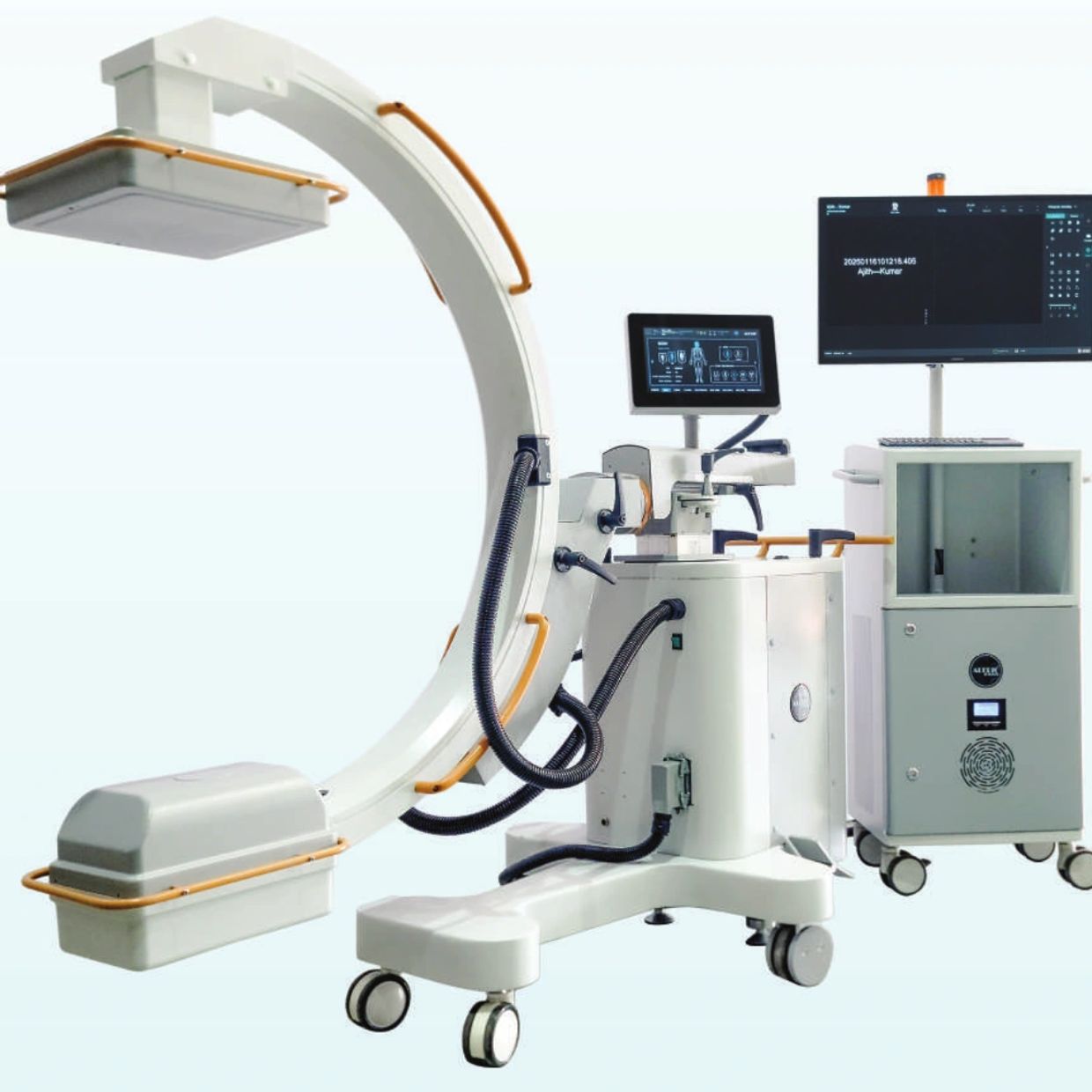

Overview of ALERIO "Virtuo" C-arm Machine
- Alerio Virtuo — the advanced C-arm system that delivers exceptional image guidance for unmatched surgical precision.
- This High Frequency Digital Imaging C-ARM operates at 100 kHz output with peak power of 4 kW, kV range 40 - 110 kV and 0.2 - 12 mA.
- The different modes of operation of the C-arm machine are - Continues Fluoroscopy, Pulsed Fluoroscopy, Half dose mode ABS Mode, Cine mode and Radiography Mode.
- The X-Ray Tube has Dual Focus and Stationary Anode. The X-ray beam Collimator has square parallel shutters with rotation and an anti-scatter Carbon fiber grid.
- The Flat Panel Detector is of type A-Si active TFT / Diode array with CSI Scintillator and active area of 210 x 210 mm.
- PC based image processor with 1,00,000 + HD image storage capacity and 32 inch UHD 4K Monitor for display. The system has Cine loop and DICOM connectivity.
- The C-arm machine has integrated touchscreen control system with versatile functions.
- The free space between FPD and Tube is 800 mm and depth of the C-arc is 630 mm allowing better access for surgical procedures. Up-down and horizontal travel is 400 mm and 200 mm respectively. Orbital rotation range is 120 deg. (-30 to +90 deg.) and axial rotation 360 deg. (-180 to +180 deg.). Wig-wag movement is = / - 12 deg.
- The C-arm machine requires single-phase 230V, 50 Hz power supply with good earthing.
